FlowVision Software

Knowledge Base

Alicat’s command and control FlowVision 2.0 software for flow and pressure control provides intuitive interfaces for getting the most out of your device when connected to a computer via serial or Bluetooth. All Alicat devices are compatible with FlowVision 2.0 software.

FlowVision 2.0 FAQ

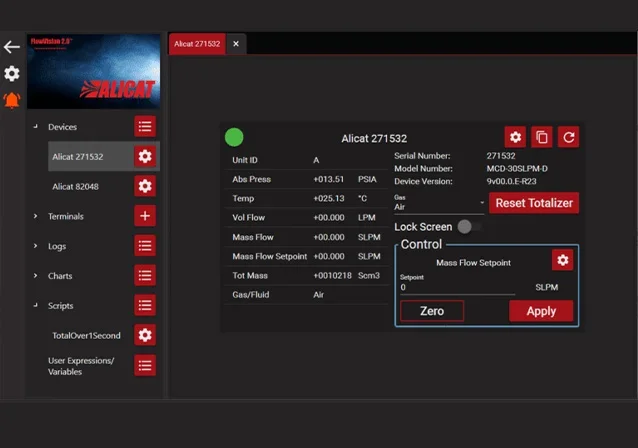

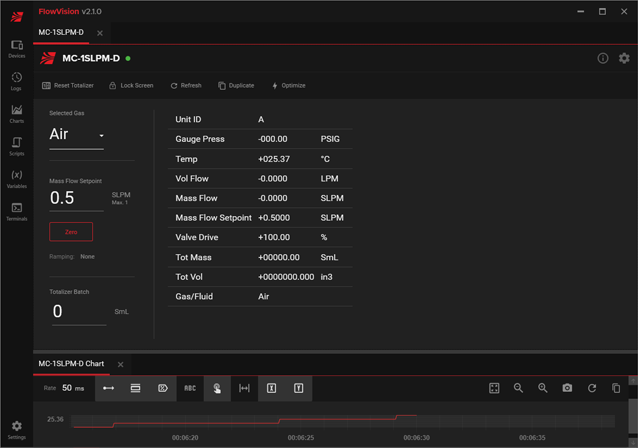

FlowVision 2.0

FlowVision 2.0 is Alicat’s next generation of flow and pressure control software, enabling users to easily collect and analyze data from Alicat mass flow and pressure instruments.

FlowVision 2.0 user manual

Download FlowVision 2.0

Features

Plug-and-play support for up to 26 Alicat instruments
Data charting and logging to CSV and SQL databases
Scripting system for customized functions
Run multiple instances of FlowVision 2.0 simultaneously and on different monitors
Easily change displayed units of measurement and controller setpoint (if equipped)
Easy access to the gas calibration selector
Address assignment to individual devices
PID loop tuning parameters (PID control loop can increase speed of response and stability for your application)
Dark mode

System requirements and downloads

Microsoft Windows 7*, Windows 8/8.1, Windows 10, Windows 11
Microsoft .NET Core 3.1 – 64 bit download | 32 bit download
An internet connection (if installing via web)
Serial port or Bluetooth adapter
26 MB hard disk space

*Requires Service Pack 1

FlowVision MX

FlowVision MX is a low-cost option for setting up a basic gas-mixing station. It allows users to easily configure up to ten mass flow controllers. Within FlowVision MX, you can save individual mixtures for easy loading, log your data to review mixture accuracy and performance and adjust the total mixture percentage or the percentage of a single controller or multiple controllers.

FlowVision MX user manual

System requirements and downloads

Microsoft® Windows Vista, Windows 7, Windows 8/8.1, Windows 10
Microsoft .NET Framework
10 MB hard disk space

Contact us if you are interested in a copy of FlowVision MX.

FlowVision SC (legacy)

FlowVision SC is Alicat’s FlowVision software for Windows XP/Vista.

The program manages up to 26 Alicat flow and pressure instruments at a time to help you create your own local network. The program interfaces with either RS-232 (Alicat’s default protocol) or RS-485 communication protocols.

FlowVision SC user manual

Troubleshooting FlowVision SC

System requirements and downloads

Microsoft Windows XP/Vista, 7, Windows 8/8.1, Windows 10
Microsoft .NET Framework – Download Now
18 MB hard disk space

FlowVision SC is available below as an immediate software download and requires a software key to function. Contact us to request a software key.
