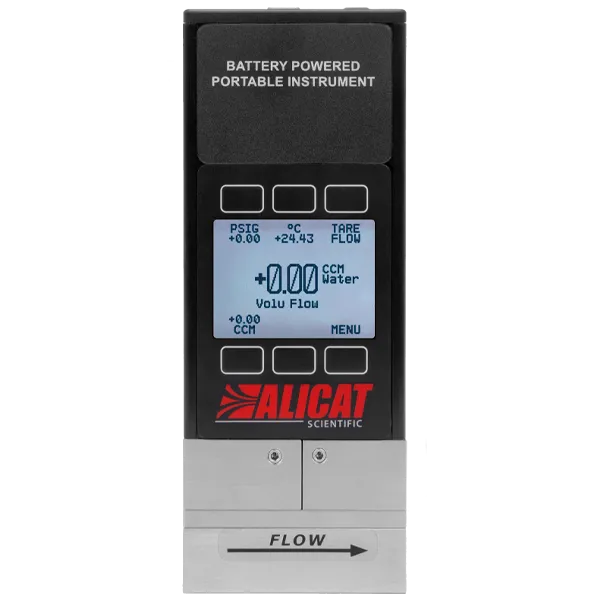

LB Series Portable Liquid Flow Meters

Battery powered liquid flow meters

Portable liquid flow meters with battery operation make them great for verifying flows around the lab or in the field. Measure flow rate, pressure, and temperature of water or other liquids.

Durable, drop‑resistant and built to be carried around
Calibrated for water, methanol, iso‑propanol, ethanol, ammonia, dimethylether, iso‑pentane, thiophene, iso‑octane, or heptane
< 1 second instant‑on to accurate flow
Simultaneously measure volumetric flow rate, fluid pressure, and fluid temperature in real time
Serial ASCII communication with wireless Bluetooth^® option
± 2% of full scale accuracy
Battery life up to 14 hours
Limited Lifetime Warranty

Operating manuals, brochures, software, and utilities →

Full Scale Flow Ranges

0.5 CCM – 10 LPM

MAX OPERATING PRESSURE

100 PSIG

Request a Quote

Ask an Engineer

Looking for a liquid flow controller instead?

LB Series Meter

Portable metering anytime, anywhere for most applications

Great for verifying flow

For water or nine other pure, non‑corrosive liquids
0.5 CCM full scale – 10 LPM full scale
± 2.0% of full scale accuracy
2 – 100% of full scale measurement range
−10°C to 60°C
Power over Micro‑USB Type B

Spec Sheets

0.5 CCM – 10 LPM

Corrosion resistant portable liquid flow meter

LBS Series Meter

Portable liquid metering with corrosion resistance

Less reactive Wetted materials

Resistant to corrosive liquids
0.5 CCM full scale – 10 LPM full scale
± 2.0% of full scale accuracy
2 – 100% of full scale measurement range
−10°C to 60°C
Power over Micro–USB Type B

Spec Sheets

0.5 CCM – 10 LPM

Build Options

Communication Protocols

Serial communication and power over Micro-USB (default)

Displays

Backlit monochrome or TFT color (TFT reduces battery duration)

Process Connections

10-32, NPT, SAE, BSPP, VCRM, VCO, Compression

Ingress Protection

IP40

Wireless Communication

Bluetooth^® Low Energy (requires Alicat Connect and a compatible Android or iOS mobile device)

Ready for the final details?

Each product is made-to-order.  Alicat’s Applications Engineers are ready to provide expertise and discuss custom options, ensuring the best fit for your needs.
