CODA™ Controllers for Liquids

Coriolis Liquid Controllers for Mass Flow

These miniaturized Coriolis Liquid Controllers measure mass flow, independent of gas or liquid composition. Incredible performance especially at low flow rates.

High accuracy option: as good as ± 0.2% of reading or ± 0.05% of full scale
Standard accuracy: as good as ± 0.6% of reading or ± 0.1% of full scale
−35°C to 70°C operating temperature
0-200 cP viscosity
Limited lifetime warranty

Operating manuals, brochures, software, and utilities →

Full Scale Flow Ranges

40 g/h – 300 kg/h

Proof Pressure Options

1,500 PSIA or 4,000 PSIA

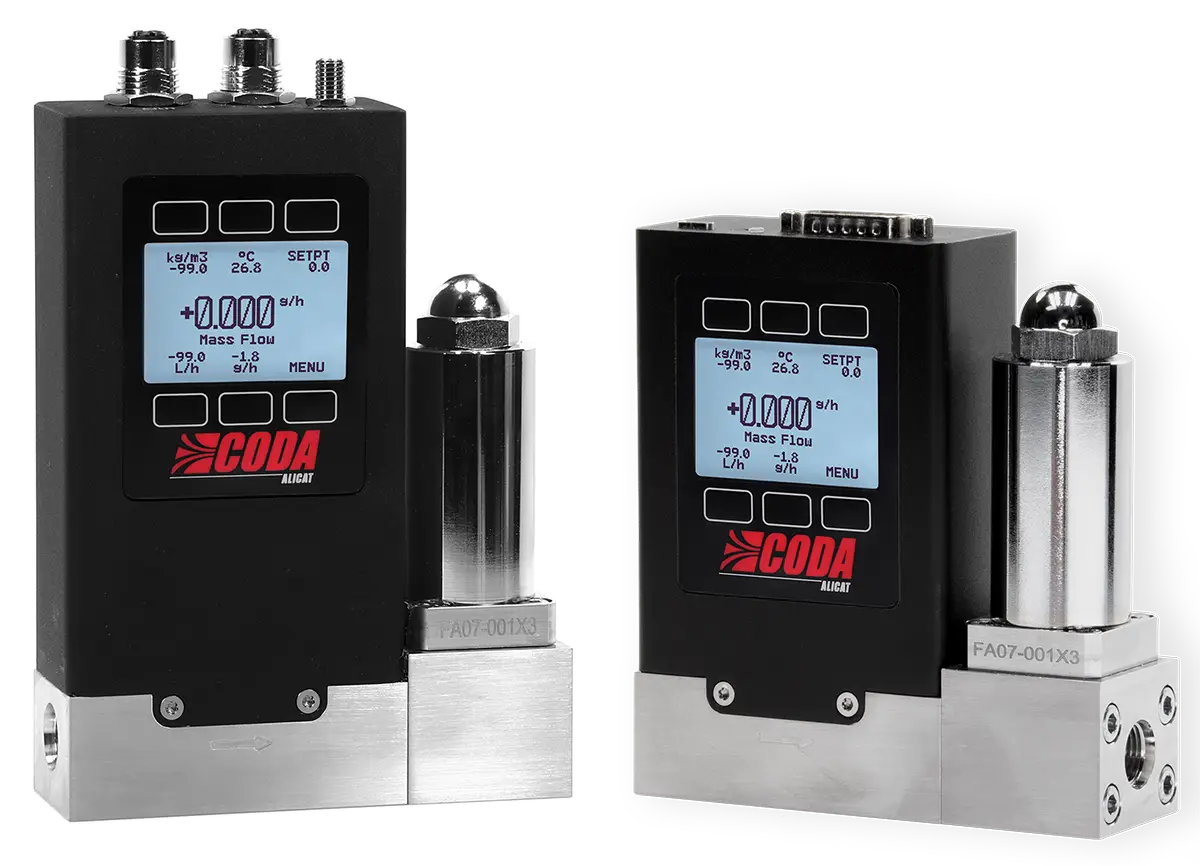

Alicat CODA Coriolis mass flow controllers for liquids

Request a Quote

Ask an Engineer

Looking for a liquid flow meter instead?

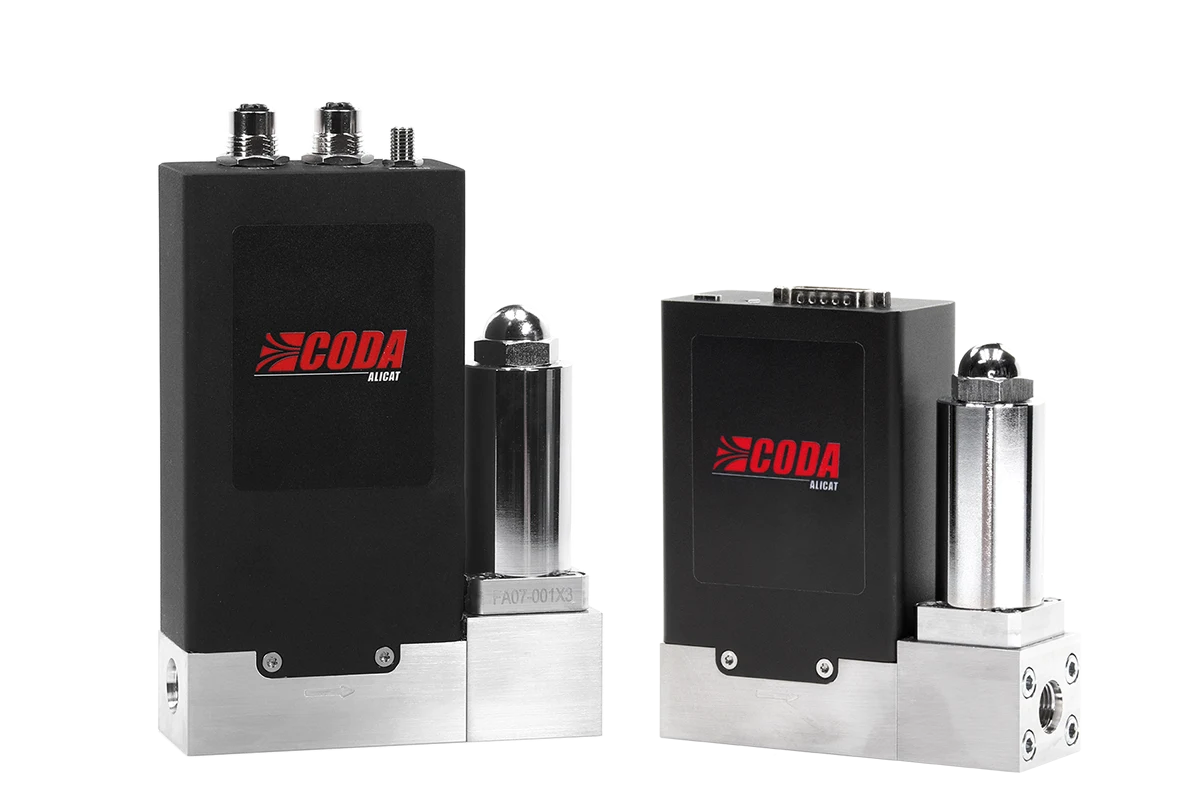

Alicat CODA Coriolis Mass Flow Controller for Liquid

CODA KC Series Coriolis Liquid Controller

For precise liquid mass flow control

Miniaturized Coriolis Tech

Accuracy: 0.6% of reading or 0.1% of full scale
Flow repeatability: ± 0.1% of full scale
5 – 100% of full scale control range (20:1 turndown)
As good as < 140 ms control response

Spec Sheets

40 g/h – 300 kg/h

High accuracy

High Accuracy CODA KC Series Liquid Controller

Coriolis liquid mass flow control

High accuracy calibration

Accuracy: 0.2% of reading or 0.05% of full scale
Flow repeatability: ± 0.05% of full scale or ± 0.025% of full scale, whichever is greater
2 – 100% of full scale control range (50:1 turndown)
All the benefits of the standard accuracy model

Spec Sheets

40 g/h – 300 kg/h

Build Options for Coriolis Liquid Controllers

Communication Protocols

RS-232 Serial (default)
RS-485 Serial
Analog (4-20 mA, 0-10 Vdc, 0-5 Vdc)
Modbus RTU (over RS-232 or RS-485)
EtherCAT
EtherNet/IP
PROFINET

Displays

None; optional remote display

Process Connections

SAE, VCRM, Compression

Body Seals

FKM, FFKM, EDPM, 316L SS, Nickel Alloy

Electrical Connector

USB-C and DB15, 8-pin M12, RJ45

Ingress Protection

IP40; IP67

FastTrack Ordering

Mass flow instruments that ship in just 3-5 business days.

CALIBRATION

Standard or High Accuracy

DISPLAY

Monochrome, Color, or None

PROTOCOL

Analog, RS-232, RS-485, Modbus RTU, or PROFIBUS

CONNECTOR

MD8, Locking Industrial, DB9M, DB15

FITTINGS

NPT

METER RANGES

2 SCCM - 500 SLPM

CONTROLLER RANGES

2 SCCM - 100 SLPM

Order Instruments

Ready for the final details?

Each product is made-to-order.  Alicat’s Applications Engineers are ready to provide expertise and discuss custom options, ensuring the best fit for your needs.

Ask an Engineer
